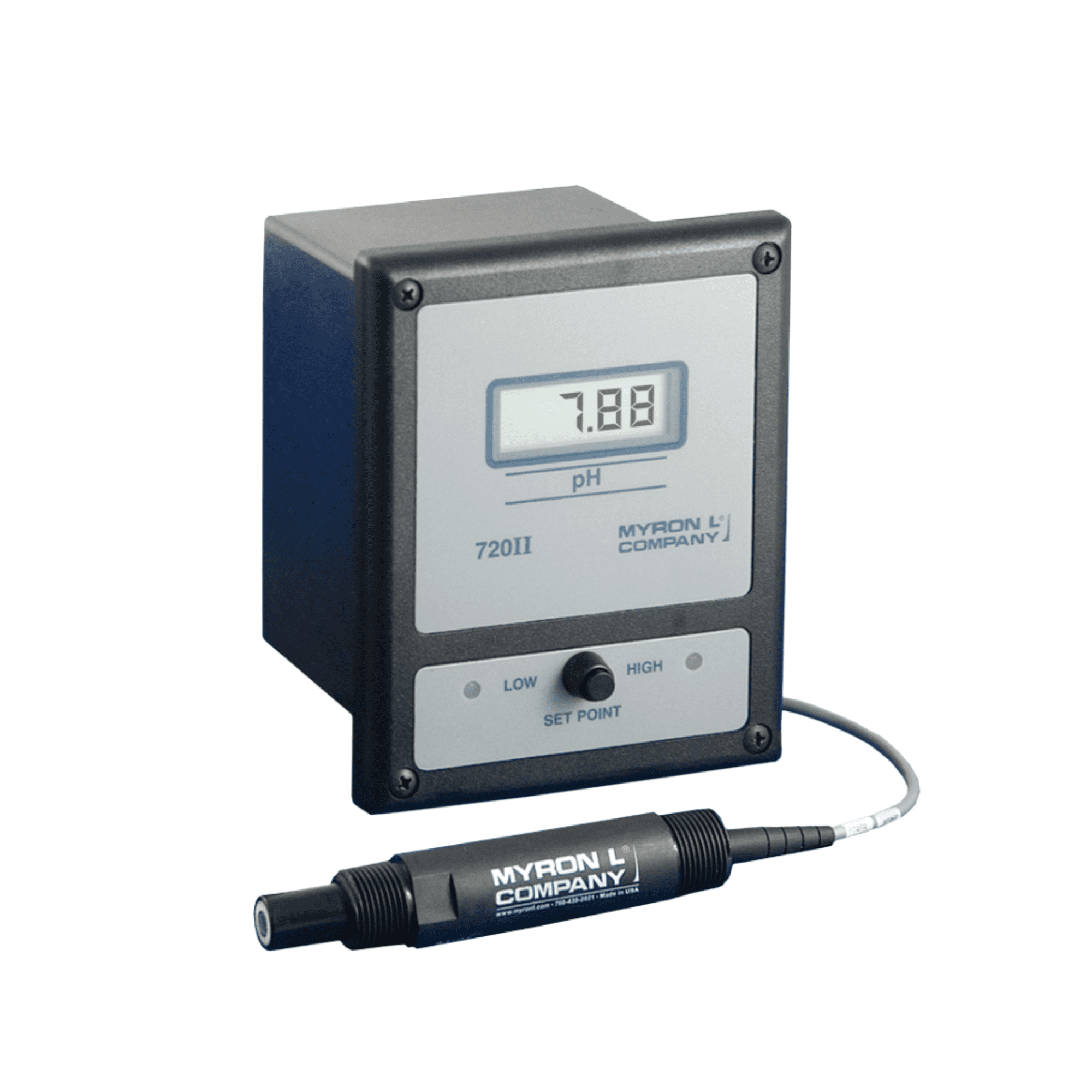

720 SERIES II PH
The advanced “isolated” circuitry of the 720 Series II pH/ORP Monitor/ controllers guarantees accurate and reliable measurements — completely eliminating ground-loop and noise issues. The unique sensor preamp allows for longer distances between the sensor and the Monitor/controller without the loss of accuracy or reliability. All Myron L® Monitor/controllers feature a highly refined and precise Temperature Compensation circuit. This feature perfectly matches the NERNST equation correcting the displayed reading to 25°C. The TC may be disabled to conform with USP requirements.
- Affordable
- Ease of Operation
- Low Maintenance
- Ensures Product Quality
- pH 0-14 or ORP ± 2000 mV
- Choice of 3½ digit display or analog meter
- Advanced “Isolated” circuitry
- Automatic temperature compensation to 25°C (NERNST equation)
- Isolated 0-10 VDC Recorder Output standard
- IP65/NEMA 4X water resistant and corrosion-proof enclosure
- Built-in electronic calibration
- Single set point/alarm standard
- Adjustable set point hysteresis
- Solid State 24 VDC Output
- 10 amp relay operates on choice of increasing or decreasing reading
- Push-to-test set point check
- Internal set point discourages unauthorized adjustment
- Selectable 115/230 VAC
- Unique, easily installed sensors
- Heavy duty “F” model sensors may be installed in ANY direction including inverted
- Process Control
- Reverse Osmosis
- Seawater Desalination
- Waste Treatment
- Food Processing
- Plating
- Power Plants
- Laboratories
- Printing
- Paper & Pulp
- Boilers & Cooling Towers
- Potable Water
- Waste Water Treatment
- Swimming Pools & Spas
- Bleach Manufacturing
- Reduction of Chromate Waste
- Environmental
