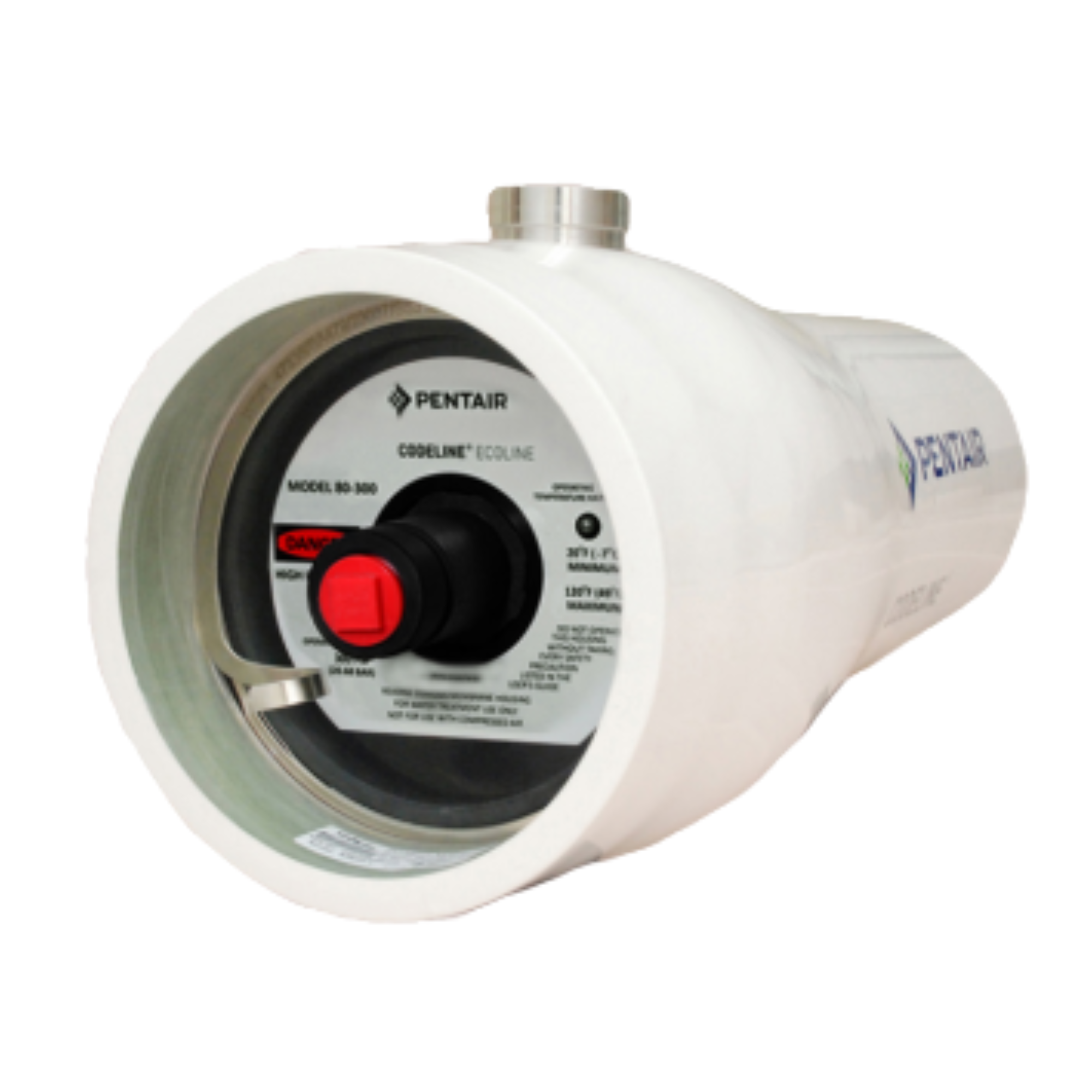

ECOLINE 8 INCH SERIES
Codeline 8 inch Ecoline series features 8” diameter membrane filtration housings with side entry and OCTA Technology, ideal for commercial, municipal, and industrial RO applications. Available in 300 PSI and 450 PSI models, they are made of durable epoxy/glass composite and fit any standard 8” membrane element.
Spesification
- Minimized leakage: The integrated octagonal shape provides a flat surface for superior and reliable side port sealing.
- Advanced end closure: Single-piece head, made of high-grade thermoplastic material, provides superior chemical resistance and eliminates permeate port sealing joints.
- Easy service and maintenance: The threaded side ports are easy to mount and allow for quick & easy on-site maintenance and replacements.
- Quick locking mechanism: The user-friendly Quick Lock System eliminates the need for special removal tools and allows quick access to the membranes.
- Improved head sealing: Integration into the head/sealing plate provides better sealing and avoids head seal roll, eliminating head leaks.
- Integrally wound locking groove: enhanced end-margin strength for better performance.
- Side port options available with 1.5” diameter IPS grooved end
- Quick lock head retention system for quick access to membranes
- Exteriors coated with high-gloss polyurethane paint for UV resistance
- Captured head seal prevents roll during head assembly fitting
- Dual end connection of 1” FNPT or 1.5” IPS grooved connection in single head
- CE certified
Ideal for commercial, municipal, and industrial RO applications.
The membrane housing of the sub-brand Ecoline 80-300 and 80-450 series is shown in the exploded view below. The parts table contains an explanation of the numbers. Clicking on the picture opens a PDF file containing both the exploded view and the parts table.
