TSS TITANIUM2 SC TURBIDITY

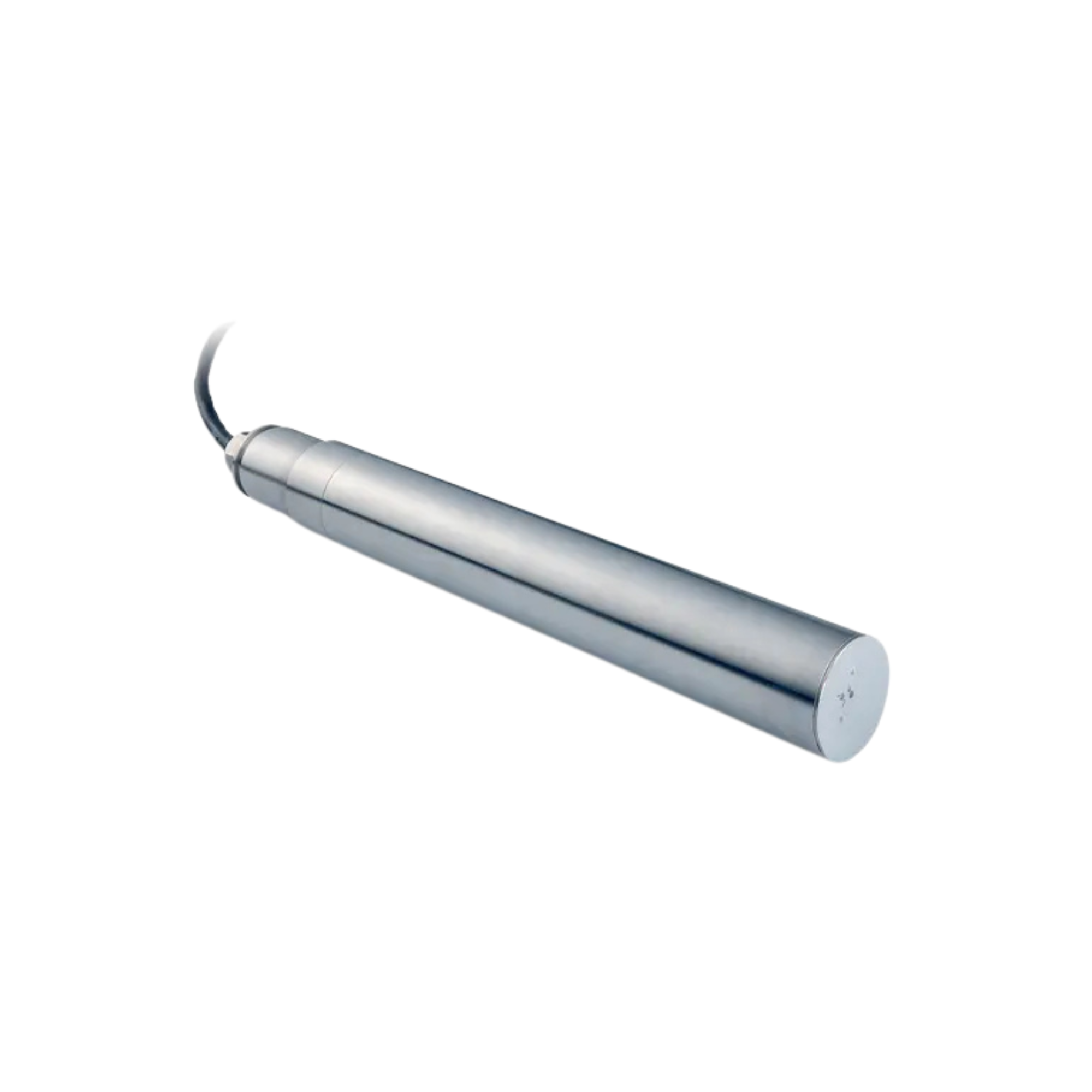

TSS TITANIUM2 sc Turbidity and Suspended Solids Immersion Probe, Titanium
The TSS Titanium2 sc is a digital process probe for the extremely accurate measurement of turbidity and suspended solids specially designed for use in aggressive fluids
Accuracy | Turbidity up to 1000 NTU: |
< 5% of the measured value ±0.01 NTU | |
Ambient Temperature | 0 – 60 °C (briefly 80 °C) |
Application | Aggressive media |
Automatic Wiper | No |
Cable Length | 10 m (optional extension cables available) |
Calibration | Turbidity (TRB): Factory calibrated |
Solids (TS): To be calibrated by customer on site | |
Zero point: Permanently calibrated in the factory | |
Calibration Method | Turbidity (TRB): Factory calibrated |
Solids (TS): To be calibrated by customer on site | |
Zero point: Permanently calibrated in the factory | |
Controller Compatibility | SC200, SC1000, SC4500. All controllers sold separately |
Diameter | 40 mm |
Flow | Max. 3 m/s (the presence of air bubbles affects the measurement) |
Includes | Turbidity & Suspended Solids sensor, user manual |
Installation style | User Defined |
Length | Tank sensor: 330 mm |
Maintenance Interval | 1 h/month |
Material | Gasket: FKM; Wiper: PA (GF), TPV |
Max Temperature | 60 |
Measurement Method | Combined multiple beam alternating light method with infrared diode system and beam focusing |
Turbidity (TRB): 2-channel 90º scattered light measurement in accordance with DIN EN ISO 7027, wavelength = 860 nm | |
Solids (TS): 90º and 120º scattered light measurement, wavelength = 860 nm | |
Measuring Principle | Combined multiple beam alternating light method with infrared diode system and beam focusing |
Turbidity: 2-channel 90° scattered light measurement in accordance with DIN/EN 27027/ISO 7027, wavelength = 860 nm | |
Solids: Modified absorption measurement; eight-channel multiple-angle measurement, wavelength = 860 nm | |
Model | TSS Titanium sc |
Mounting Configurations | Immersion |
Operating Temperature Range | 0 – 60 °C |
Parameter | Turbidity, Suspended Solids |
Pressure Range | 10 bar or 100 m |
Range | Turbidity (TRB): 0.001 – 9999 NTU |
Solids (TSS): 0.001 – 500 g/L | |
Repeatability | TSS content: < 4 % |
Turbidity: < 3 % | |
Response Time | 1 s < T90 < 300 s (adjustable) |
Response Time T90 | 1 – 300 s adjustable |
Special Notes | Installation note: |
Distance sensor–wall | |
> 50 cm (Turbidity) | |
> 10 cm (TSS) | |
Warranty | 12 months |
Weight | approx. 1.6 kg |
What’s included? | Turbidity & Suspended Solids sensor, user manual |
- Unique Multi-Beam Pulsed Infrared Light System
Standard Compliant and Precise – Ease of Calibration
Compatible with Hach SC controller platform
Automatic Compensation for Air Bubbles and Temperature Swings for Accuracy
Titanium Probe Designed for the Most Difficult Environments
Two parameters in one instrument–Suspended Solids and Turbidity
