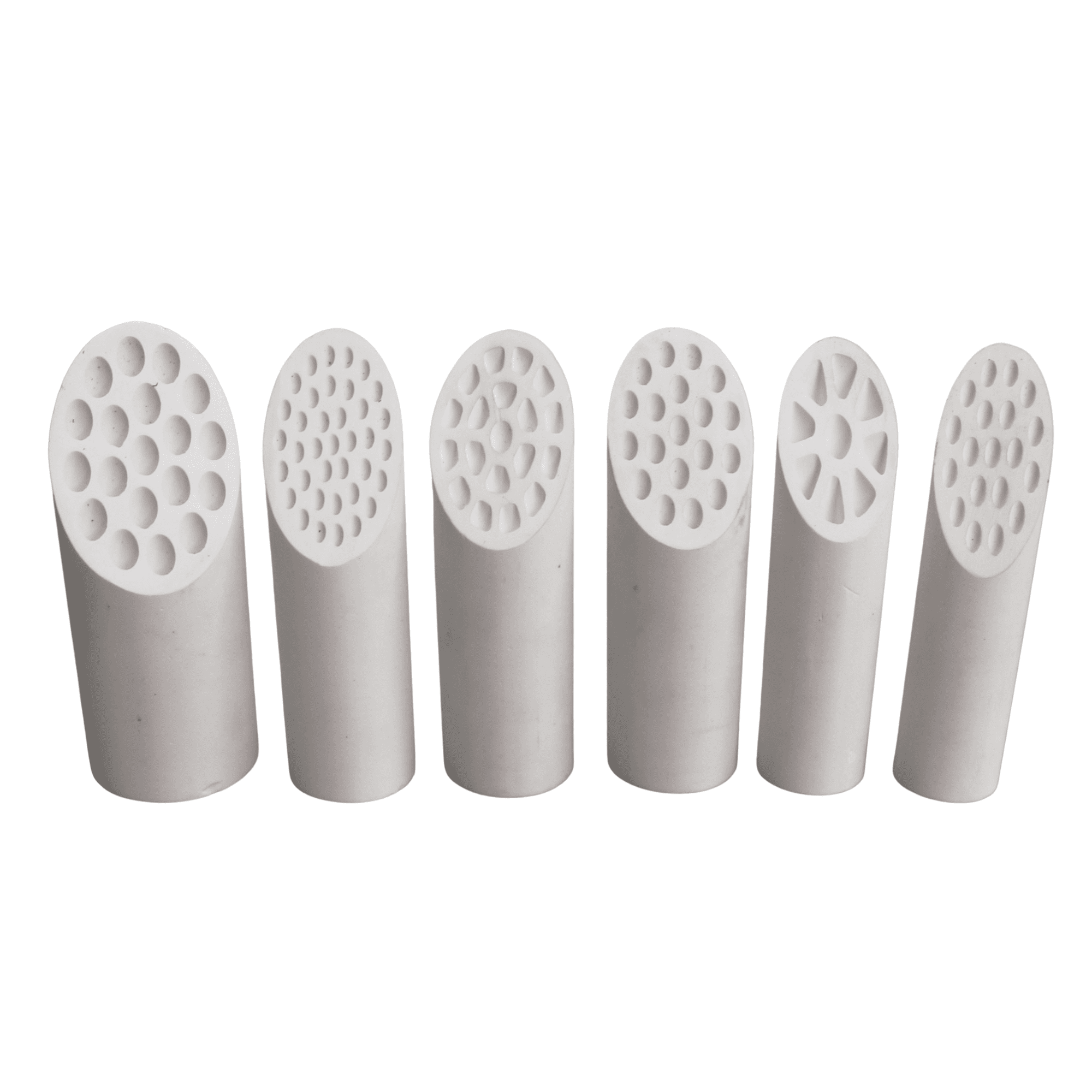

TUBULAR CERAMIC MEMBRANE
Inorganic ceramic membrane is a precision filter material with porous structure, which is made of alumina, titanium oxide, zirconia and other inorganic ceramic materials through high-temperature sintering. It is composed of asymmetric distribution with porous support layer, transition layer and membrane layer. The filtration accuracy covers microfiltration, ultrafiltration, and small pore size (≥ 2nm), which can be widely used for separation in pharmaceutical, food, chemical and other production processes.
- High permeability, long service life, and low cost
- Narrow aperture distribution and high separation accuracy
- The support body has high strength and small deviation, excellent
acid and alkali corrosion resistance, low loss rate - Modification ofthe membrane layerto achieve hydrophilic /hydrophobic
directional regulation control - Rich products with separation accuracy ranging from 2nm to 5000nm
- Rich products with separation accuracy ranging from 2nm to 5000nm
Intelligent ceramic membrane production line, more stable mass
production products, lower cost - Offer customised services for specialised ceramic membranes
to meet different application scenarios
- Ceramic membrane system has high loading density,
small floor area and large capacity of single equipment - The separation process is simple,with fewsupporting devices,
easy operation, and easy integration with other processes - No filter aid, no solid waste generated
- Long service life, normal operation for more than 5 years
- Automated control, saving labor costs
- System filtration
- System circulation
- System top material
- System washing water
- Online back wash
- System rinsing
- CIP cleaning
- Thermostat control
Main System | Accessory |
Membrane filtration | The system is equipped with PLC/DCS
automatic control,
Jiuwu autonomous program control software,
electrical control cabinet, instruments, valves,
circulation tanks,
circulation pumps, feed pumps, pipelines, etc |
Back wash system | |
Design Pressure Level | |
CIP cleaning | |
PLC/DCS control | |
Module Sealing Form | |
Interface Type | |
Standard |
